Eclipse Room Controller

Switch, Thermostat and more…

FUNCTIONALITY

Control All Devices in Room

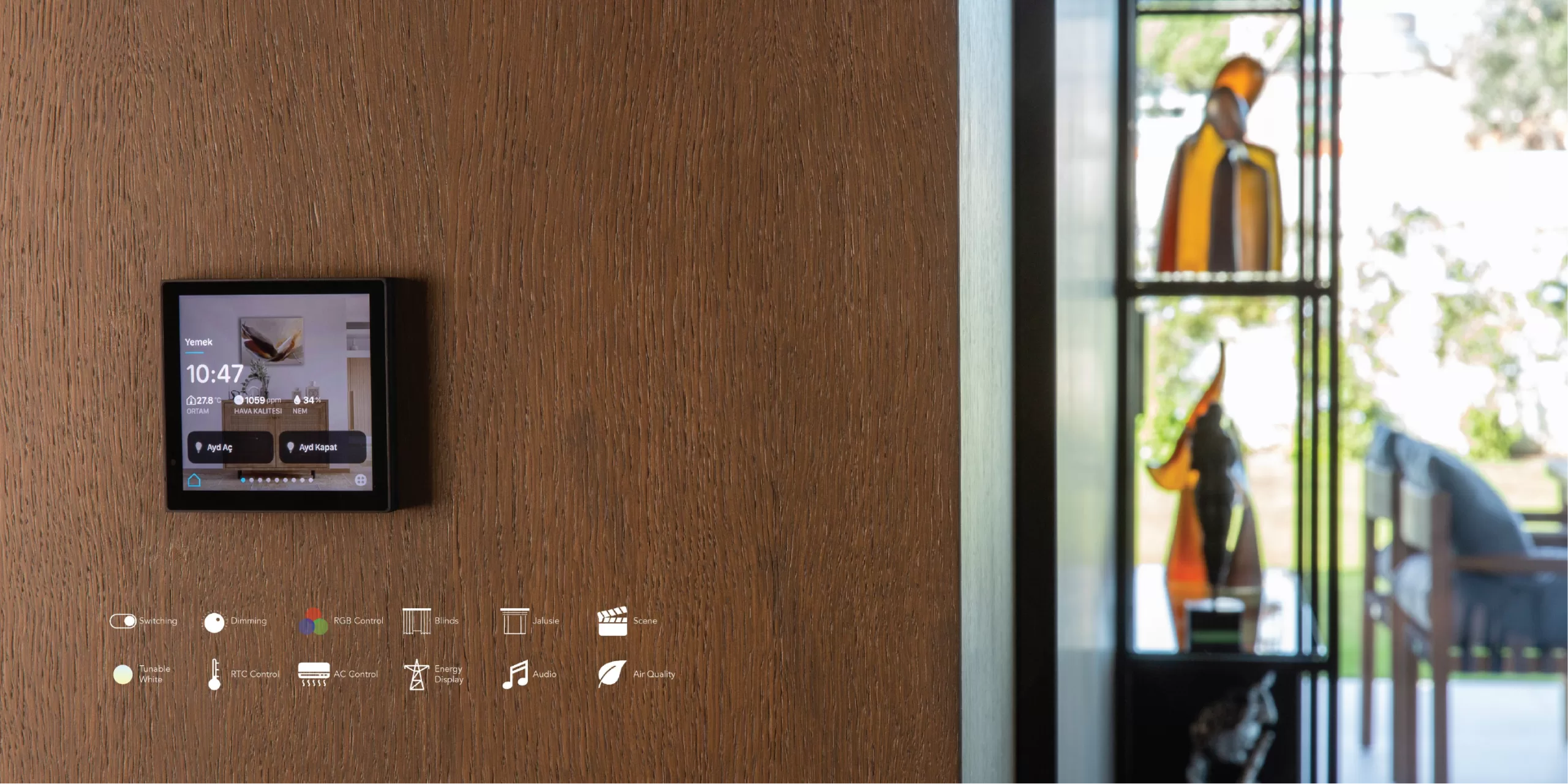

Eclipse Room Controller is designed to replace all control devices on the wall.
Simply, one digital control panel to control all.

FUNCTIONALITY

Best in Class Features

DESIGN

Born

to be Exclusive

Eclipse room controller is designed to be the most exclusive touch panel for rooms. High quality display combined with premium materials in the same design language of other Core products with only 11mm thickness on the wall. Intuitive user interface provides seamless control experience to match with all at last. The result is more than a satisfaction…

HIGH

QUALITY DISPLAY

INTUITIVE

USER EXPERIENCE

ECLIPSE

DESIGN LANGUAGE

PREMIUM

MATERIALS

HIGH QUALITY DISPLAY

INTUITIVE USER INTERFACE

ECLIPSE DESIGN LANGUAGE

PREMIUM MATERIALS

DESIGN

Premium Finishes
for Exclusive Living Spaces

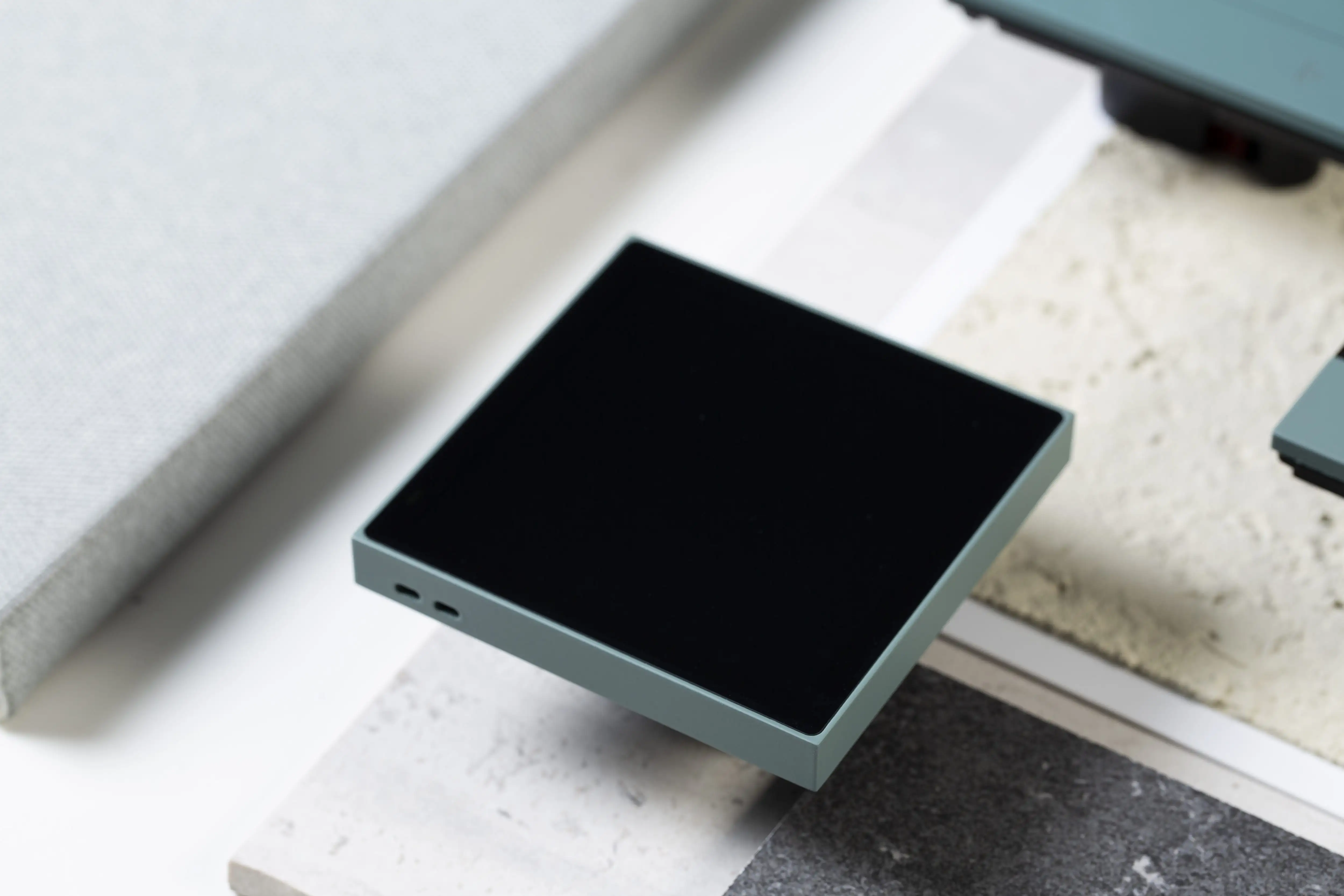

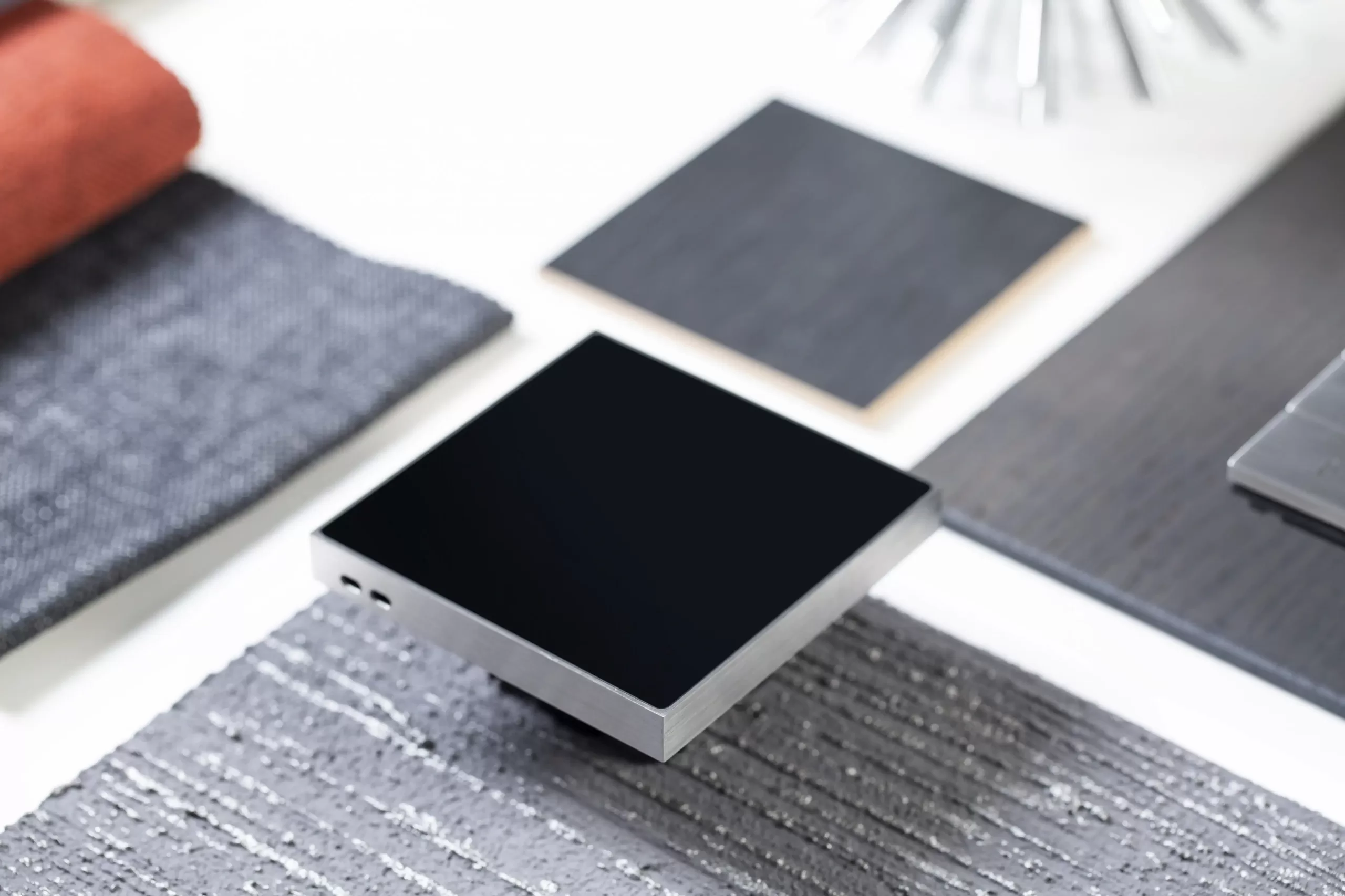

Brushed Finish

Pure form of stainless steel, brass and aluminum are brushed with perfect craftsmanship to provide satin effect in each touch to the device.

Stainless Steel

Brass

Aluminum Black

Aluminum Grey

Brass
Aluminum Grey

Obsidien Black

Silky-Matte Finish

Aluminum is painted with unique colors and coated with special techniques to provide silky feeling in each touch to the product.

Glacier White

Titanium Grey

Obsidien Black

Sand Beige

Verdant

Cocoa Grey

DESIGN

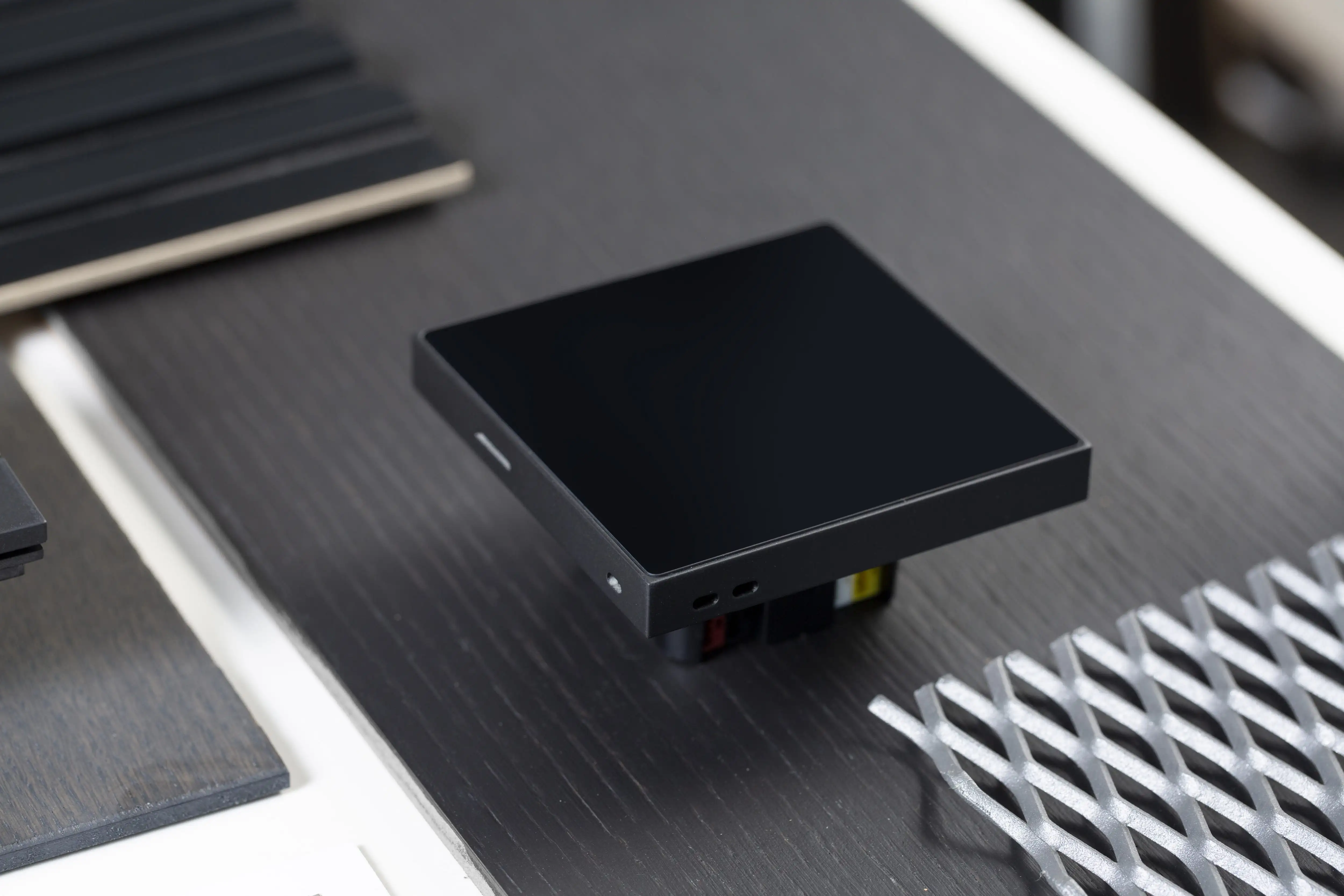

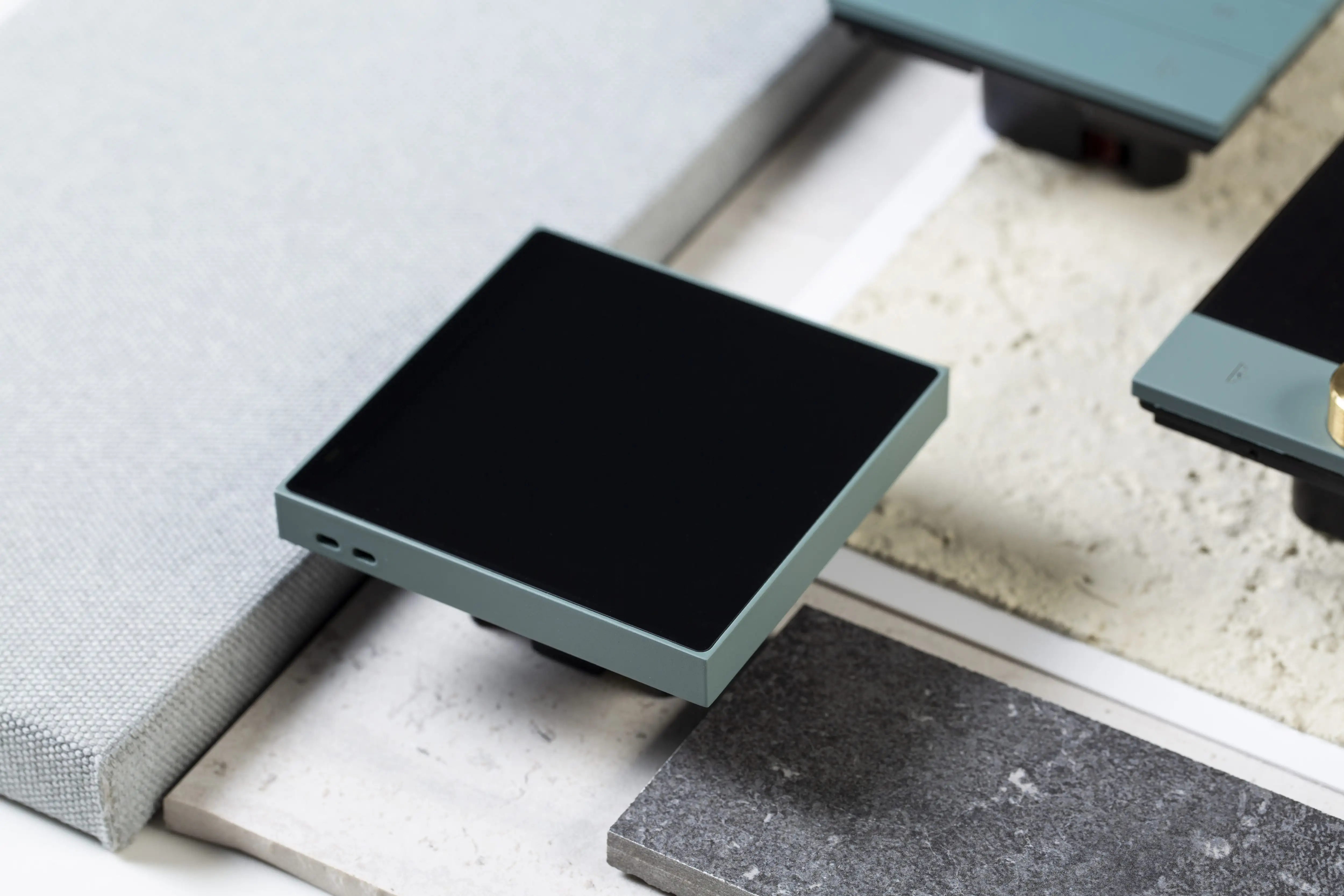

Gallery

DESIGN

Intuitive User Interface

Eclipse Room Controller is equipped with intuitive, functional and easy-to-use user interface to provide seamless user experience. Bigger icons and texts, press feeling buttons, extensive information about automation system and slider navigation make user experience like traditional switch or thermostat.

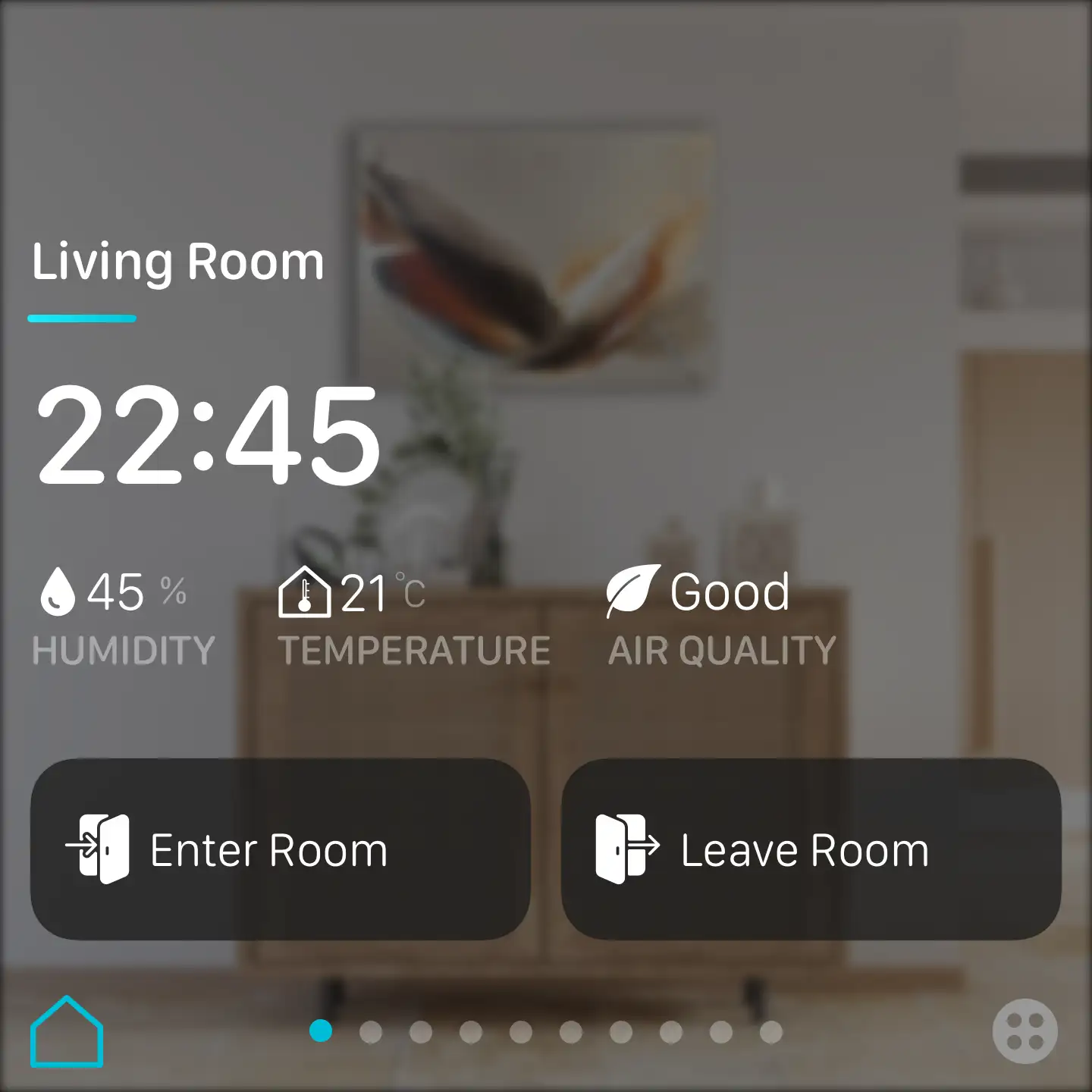

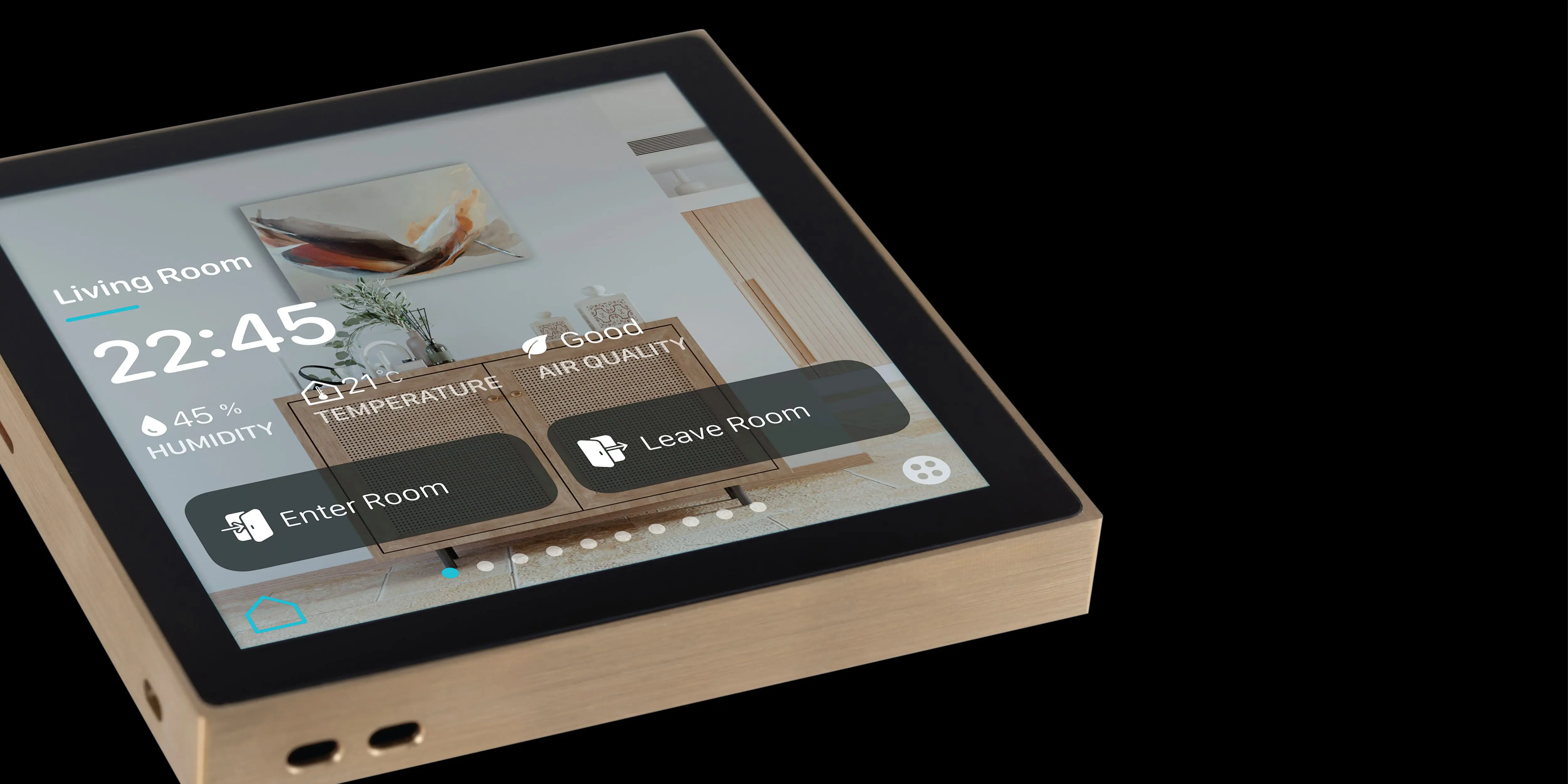

Main Page

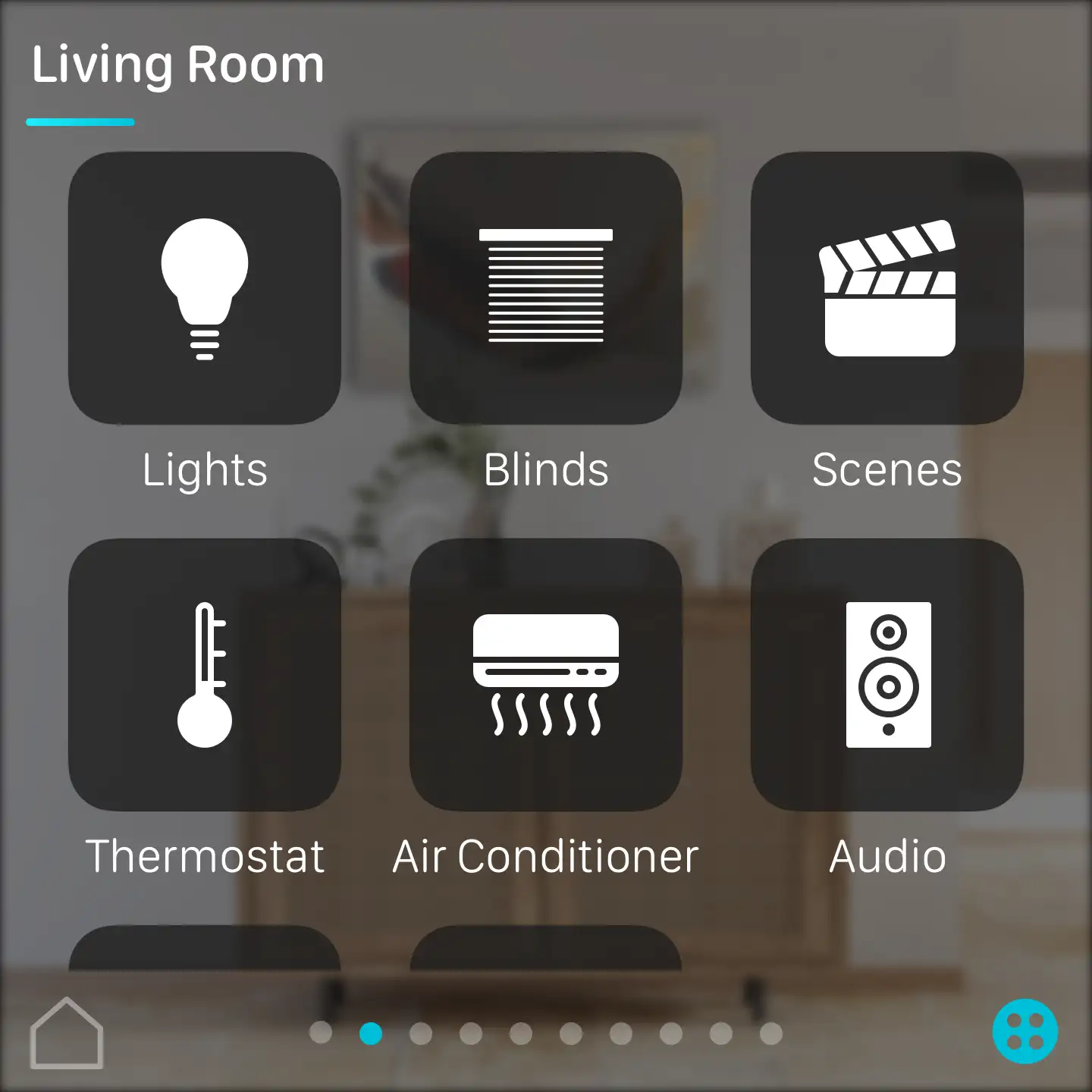

Category Page

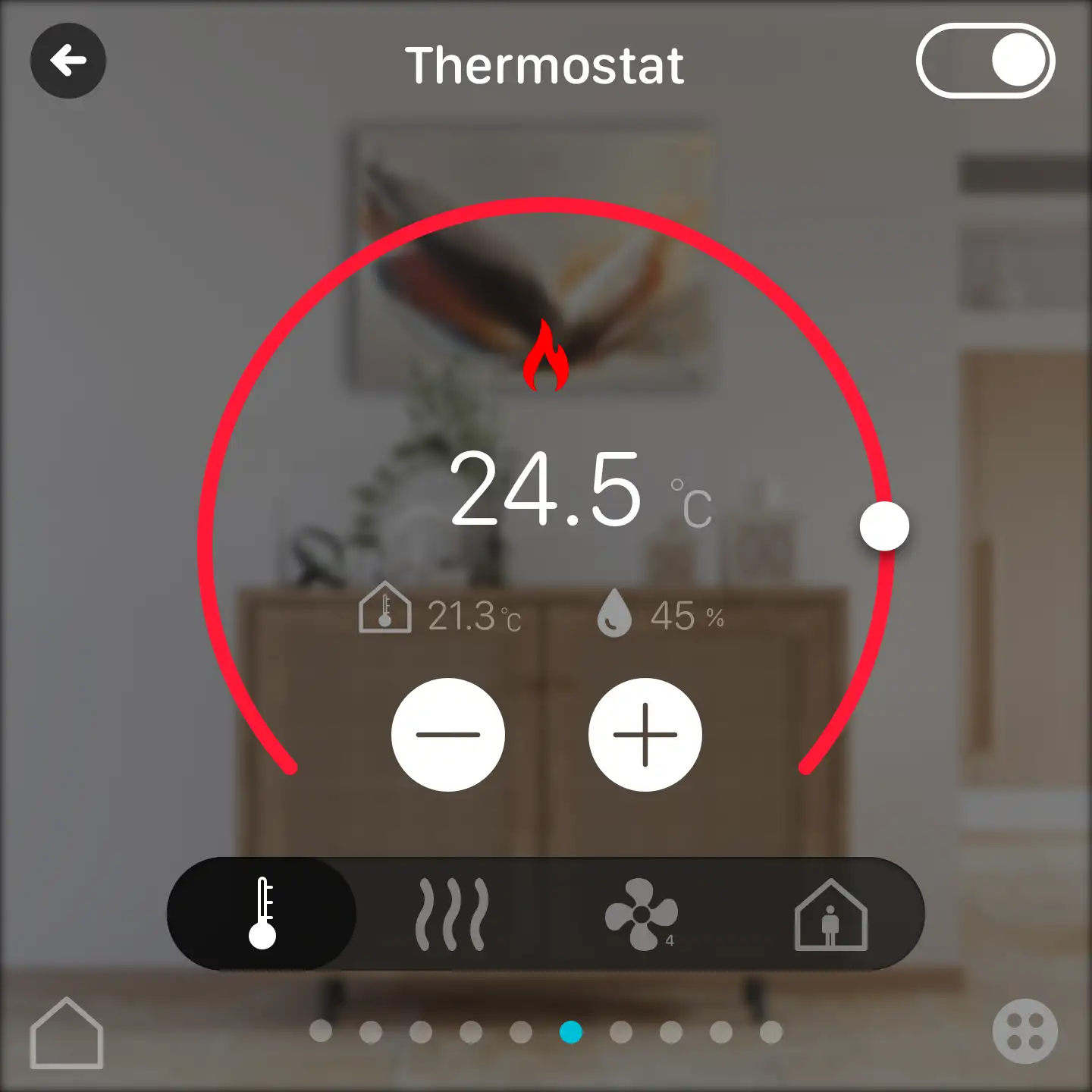

RTC Control

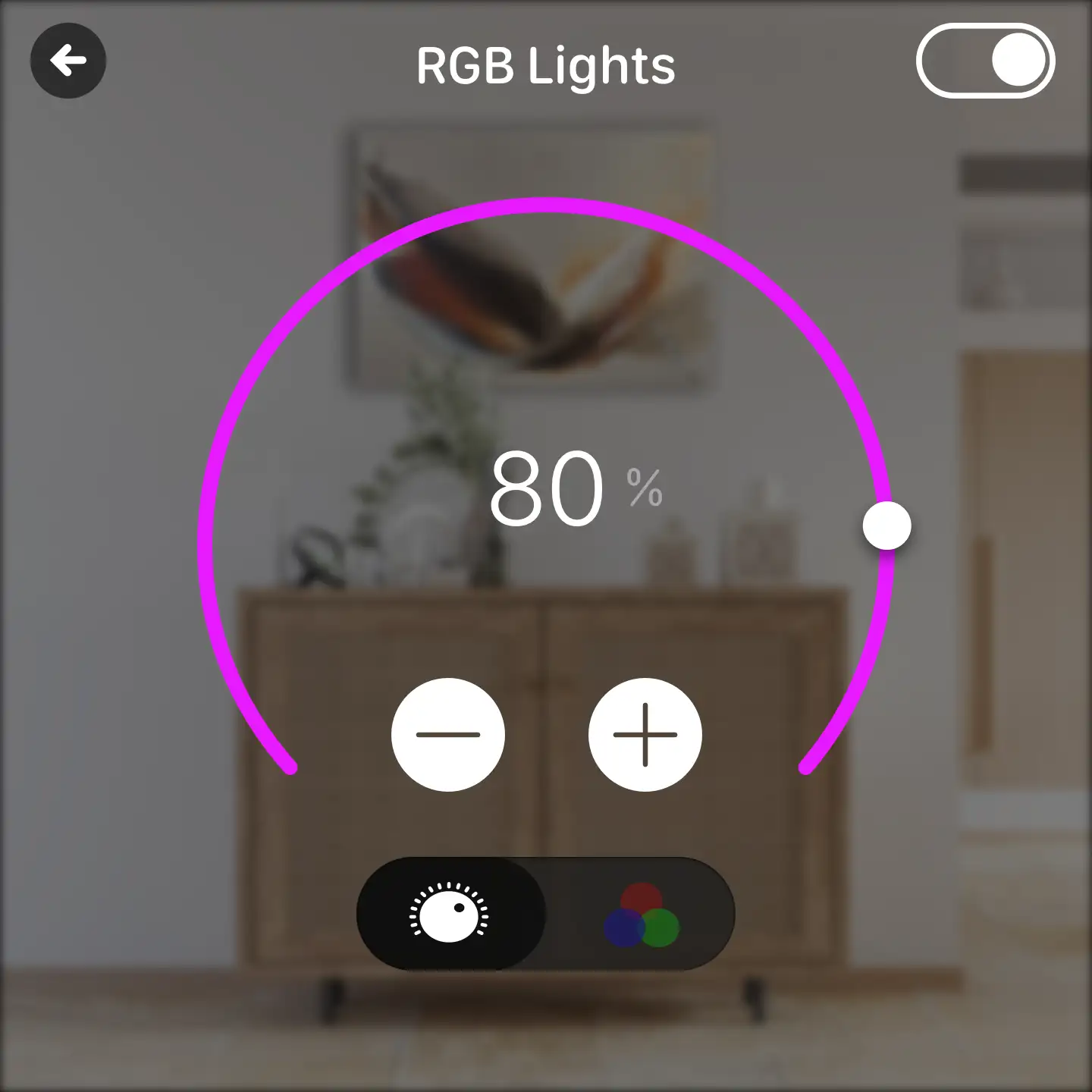

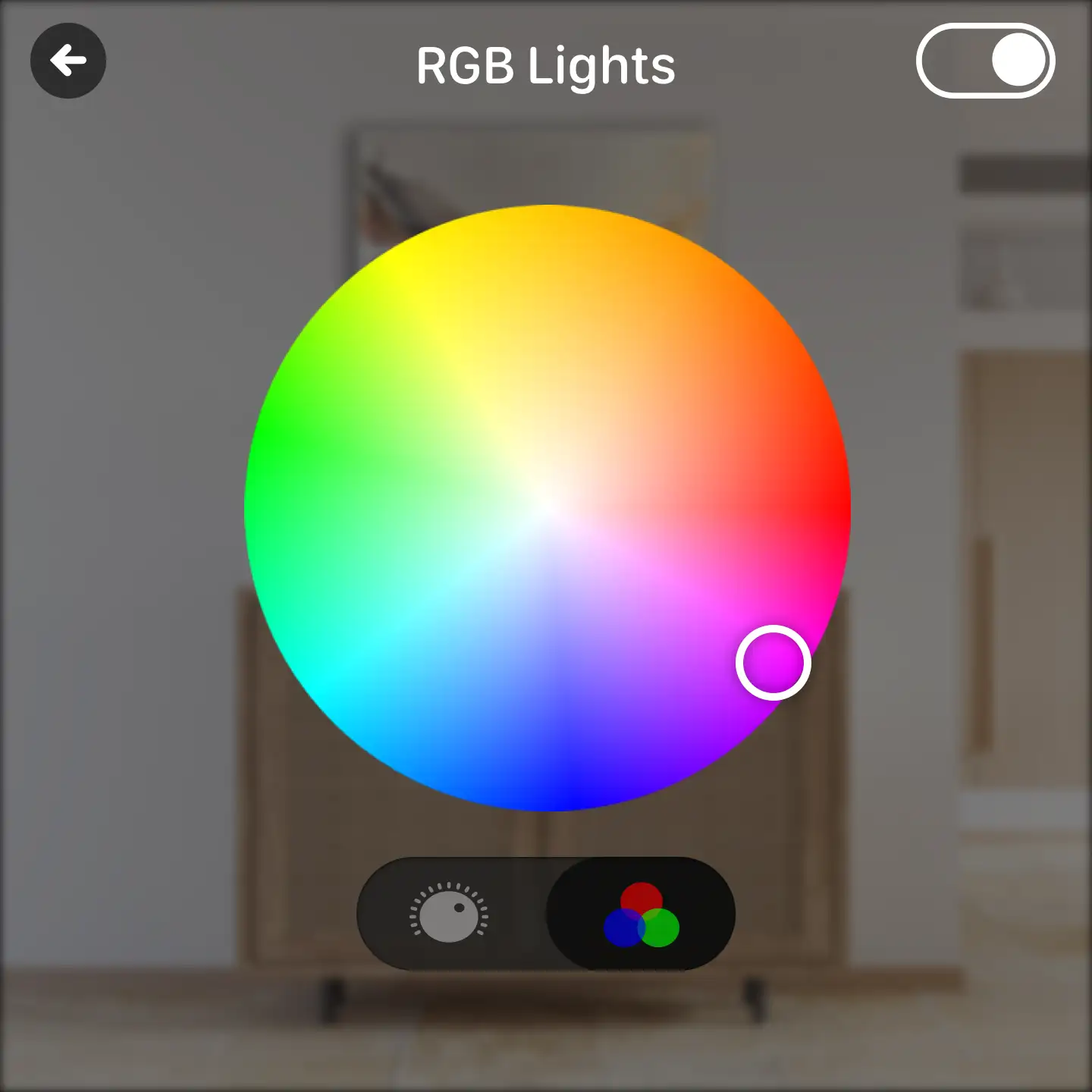

RGB Control
RGB Control

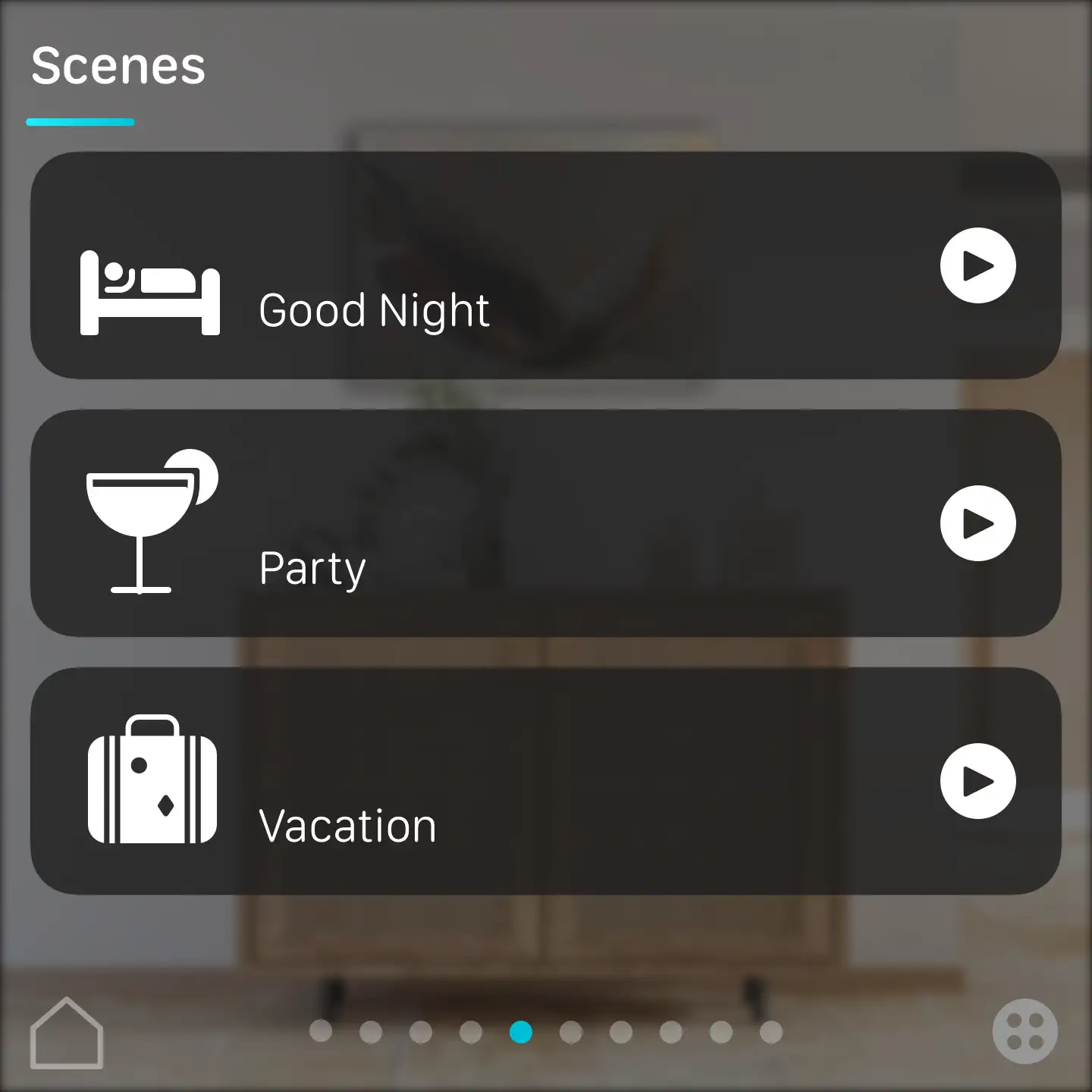

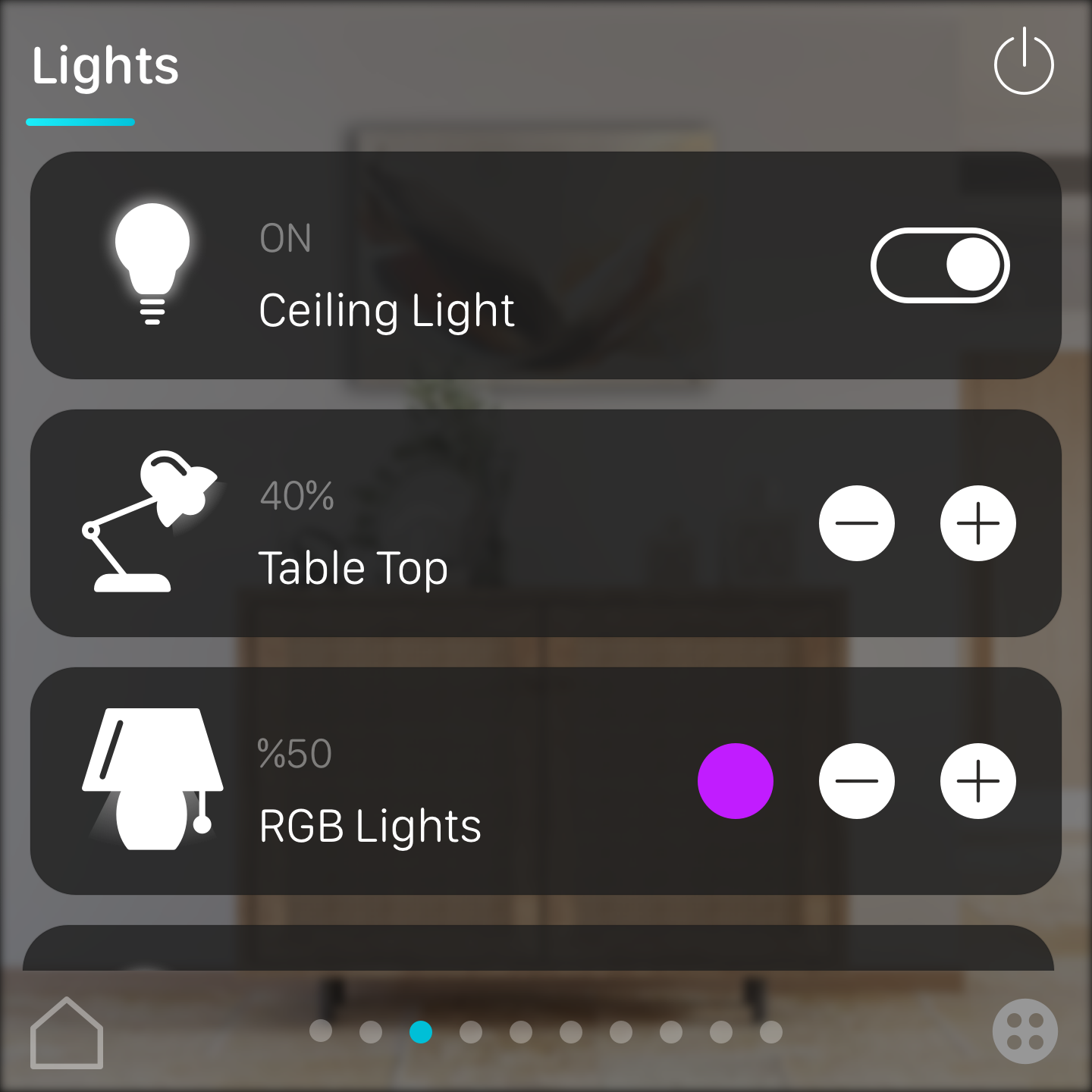

List View
List View
List View
Air Quality Display

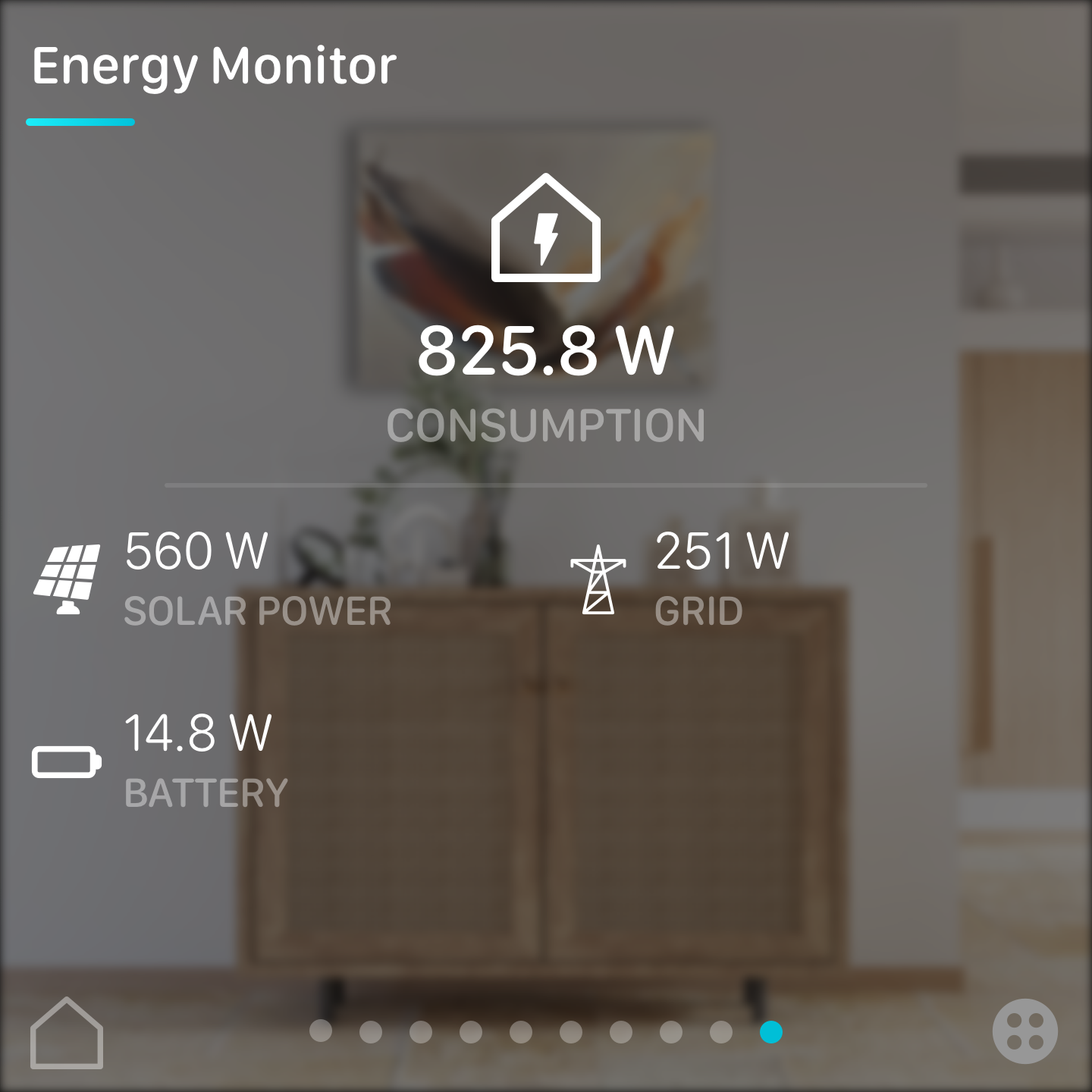

Energy Display

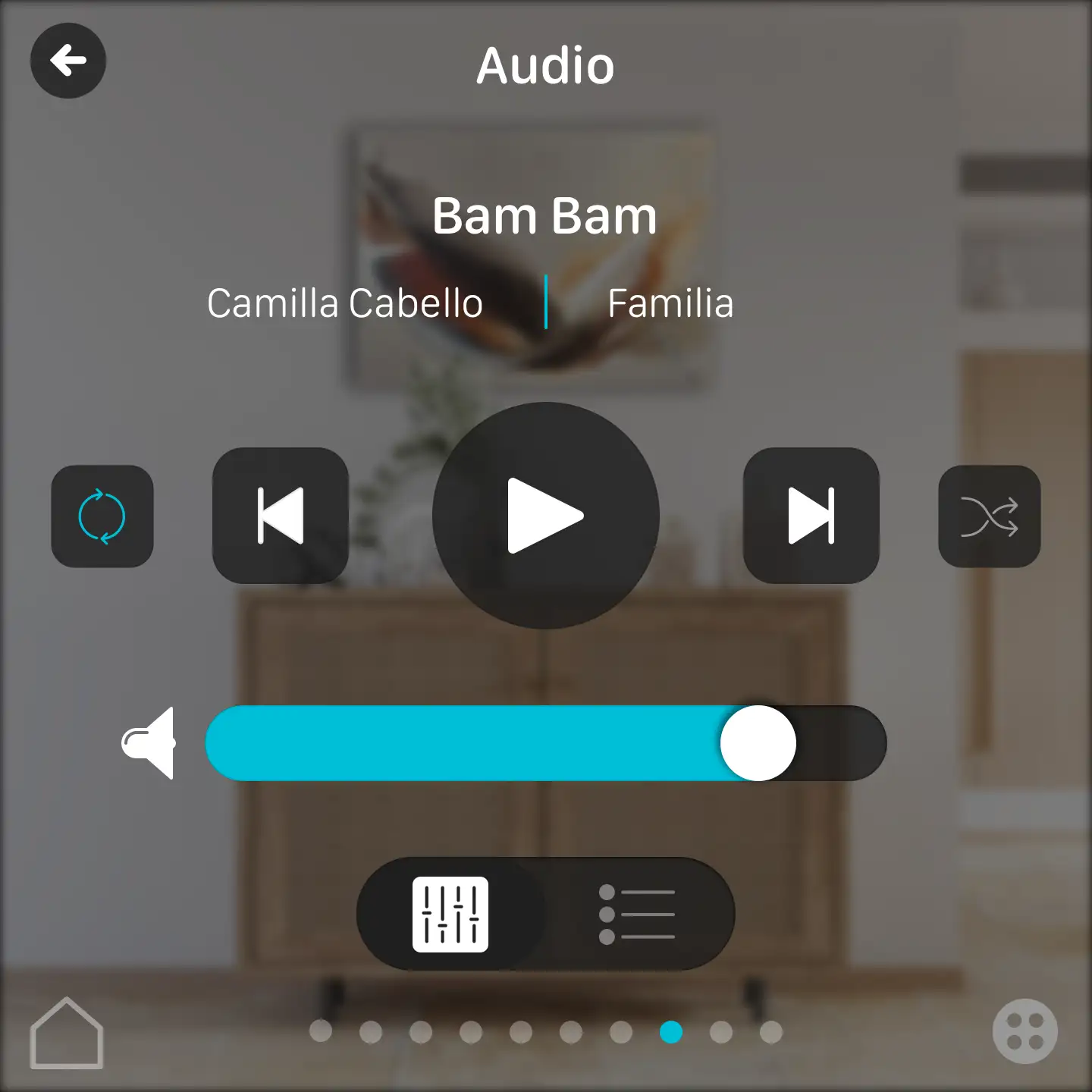

Audio Control

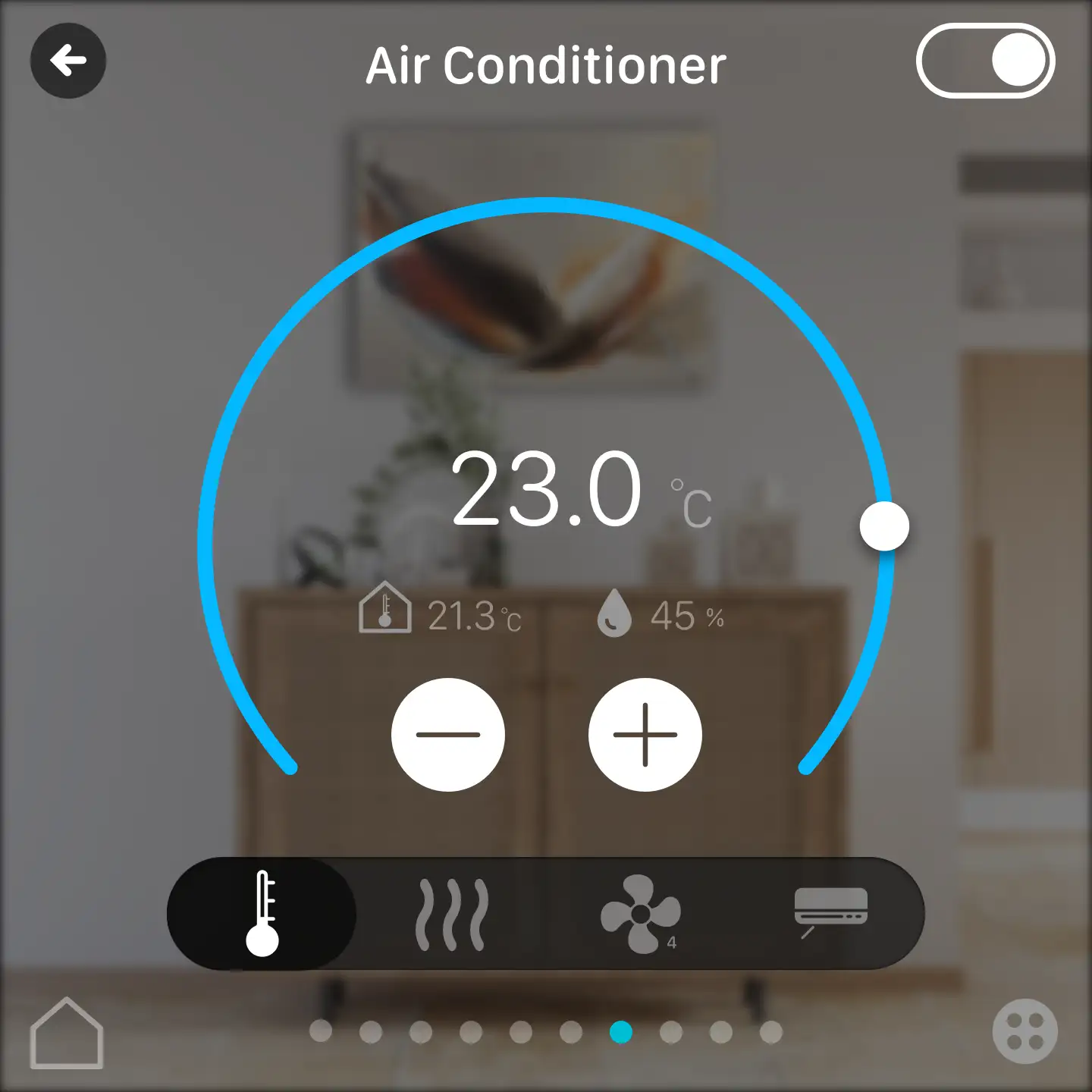

AC Control

INFO

Technical Specs

Processor:

Arm Cortex-A7 900MHz

512 MB DDR3 RAM

Embedded Linux Operating System

Display:

IPS TFT

4″ – 720px X 720px

400 cd/m2

HD Display

Sensors:

Temperature & Humidity

CO2

Proximity & Light

Dimensions:

86mm X 86mm X 11mm

Casing Material:

Aluminum

Brass

Stainless Steel

depending on the finish selection

Power:

29 VDC

via KNX Auxilary Power Supply

Connectivity:

KNX-TP

Programming Tool:

ETS

KNX Figures:

Max. Page: 12

Max. Control Element: 64

Max. KNX Communication Objects: 65536

Installation:

German IEC/EN 60670 Inwall Box
