Eclipse
Thermostat
Multi-functional and Intuitive
Eclipse
Thermostat
Multi-functional and Intuitive
FUNCTIONALITY
Functional but not Complicated
Most of the multi-functional thermostats offer very complicated user experience.
Eclipse thermostat is designed to be super easy to control but at the same time
functional to control most of the heating&cooling systems.
LARGE
SCREEN
AIR QUALITY
MEASUREMENT
CONTROL
WİTH KNOB
ECLIPSE
DESIGN LINE
LARGE SCREEN
AIR QUALITY MEASUREMENT
CONTROL WITH KNOB
ECLIPSE DESIGN LINE
DESIGN
Intuitive Control
of Temperature

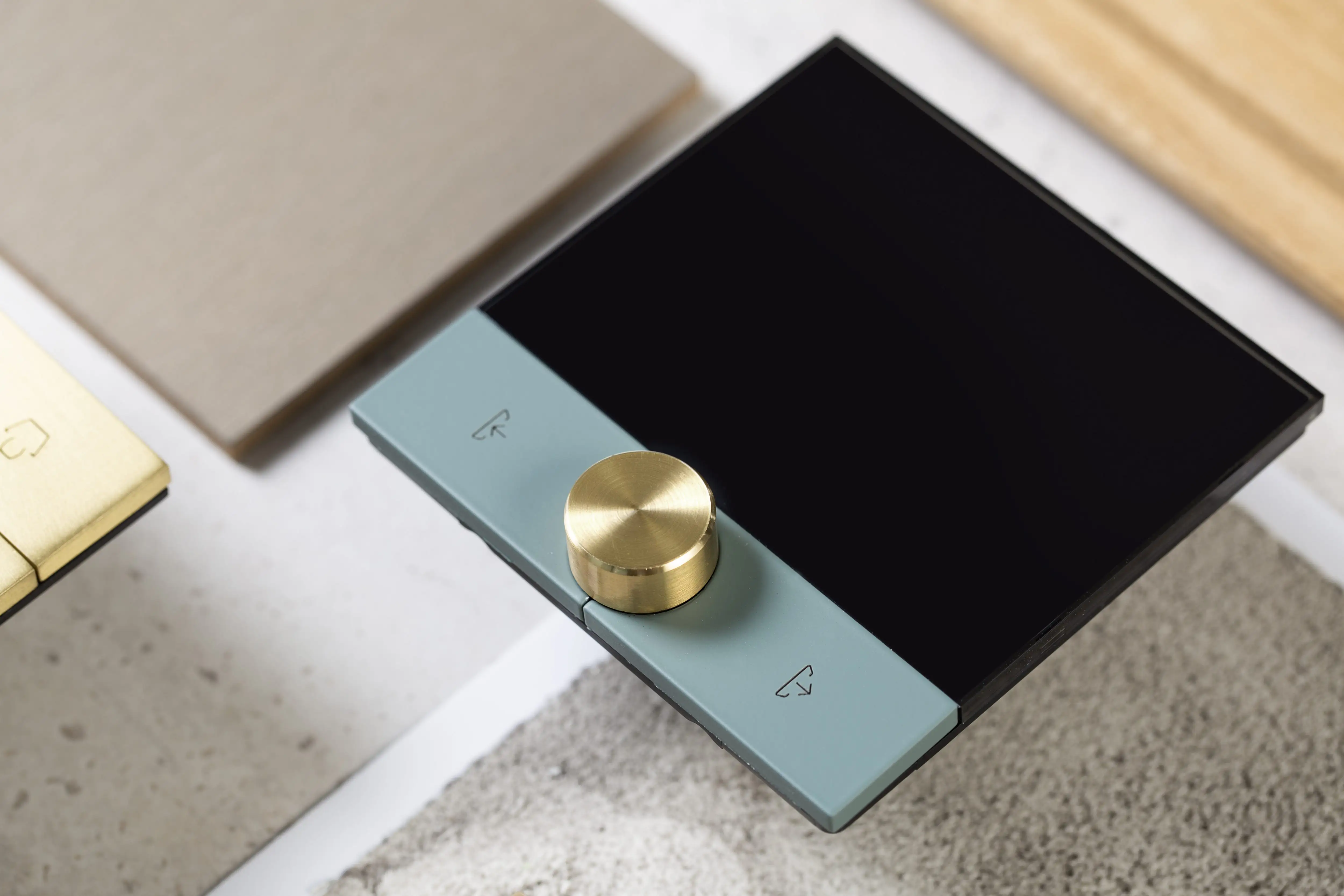

SUPER KNOB
All functions including temperature change is controlled via single Knob. Just rotate Knob to change room temperature, or press and rotate to select which function to change.
CONFIGURABLE FUNCTIONS
Eclipse Thermostat has several functions like temperature change, operation mode, operating mode, fan control and also AC vane control. Functions are configured via ETS and only functions that configured are displayed in the screen.
CUSTOMIZABLE BUTTONS
There are 2 backlight icon buttons which can be configured to control any function in the room such as switching or dimming; or can be configured to control thermostat functions.
DESIGN
Premium Finishes
for Exclusive Living Spaces
Brushed Finish
Pure form of stainless steel, brass and aluminum are brushed with perfect craftsmanship to provide satin effect in each touch to the device.
Stainless Steel
Brass
Aluminum Black
Aluminum Grey
Aluminum Black
Brass
Stainles Steel
Aluminum Black
Titanium Grey
Sand Beige
Obsidian Black
Glacier White
Cocoa Grey
Verdant
Silky-Matte Finish
Aluminum is painted with unique colors and coated with special techniques to provide silky feeling in each touch to the product.
Glacier White
Titanium Grey
Obsidian Black
Sand Beige
Verdant
Cocoa Grey
FUNCTIONALITY
Complete Air Conditioner Thermostat
DESIGN

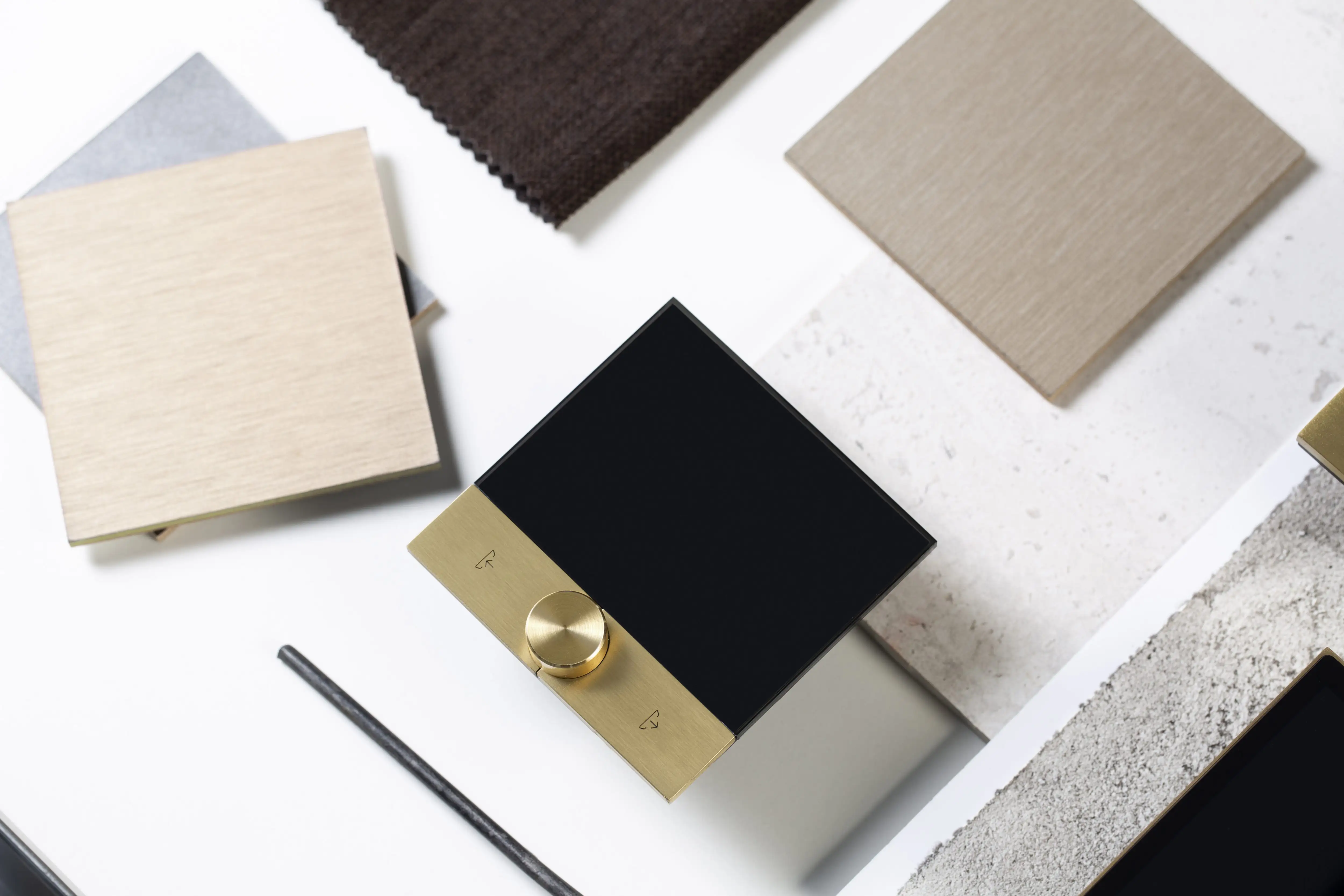

Gallery
INFO
Technical Specs
Sensors
Temperature & Humidity
CO2
Proximity & Light
Dimensions
86mm X 86mm X 11mm
Fold Material
Aluminum
Brass
Stainless Steel
depending on the finish selection
Fold Thickness: 4mm
Knob Material
Brass
Stainless Steel
depending on the finish selection
Power
29 VDC – 13 Watts
from KNX Bus-line
Connectivity
KNX-TP
Optional Modules
VRV Modules
Mitsubishi Electric
Daikin
Samsung Nasa
LG
Gree
Mitsubishi Heavy
Installation
German IEC/EN 60670 Inwall Box
